AC Triac RF+Push dimmer

1.  Support control traditional incandescent lamps, halogen lamps, triac dimmable LED lamps.

2.  Support set up min brightness.

3.  Trailing edge phase-cut dimming.

4.  Temperature detecting switch,with overheat protection and automatic recoverfunction.

5.  Overloading protection,automatic power limit.

6. Signal Auto-Transmiting and mode auto-synchronization function.

7. Can be installed in a standard 86*86 wall junction box,VO class anti-fire case.

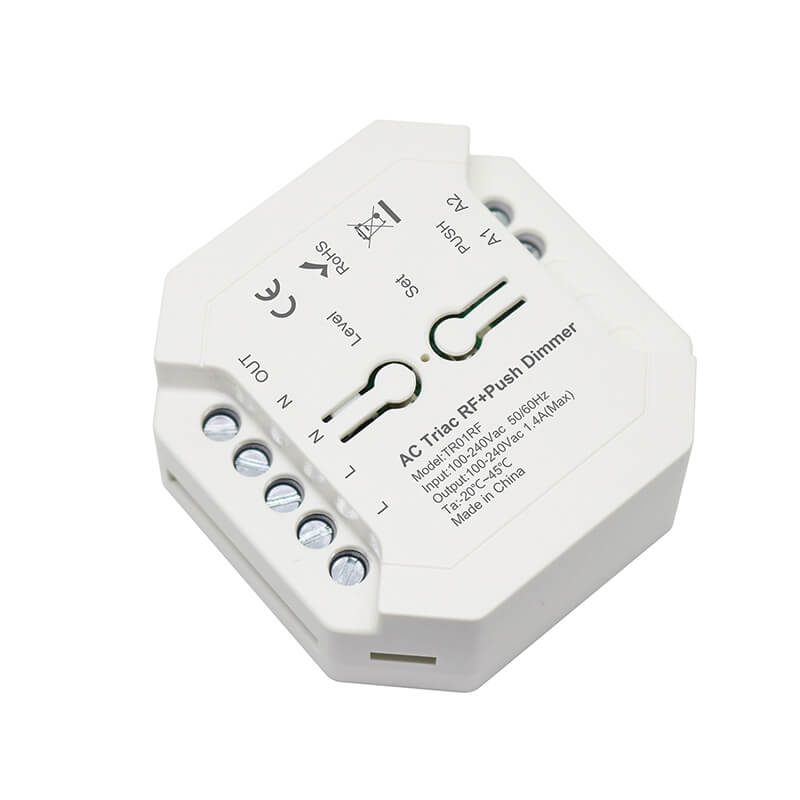

AC RF+Push triac dimmer




  Item AC Triac Dimmer(RF+Push)
  Model   TR01RF
  Input Voltage 100-240V~ 50/60Hz
  Output Voltage 100-240V
Output Current 1.4A
 Output Power 154W@110V 308W@220V
  Dim Method   RF wireless dimming
Push dimming
2.4G RF Control Distance 30m
  Working Temperature   -20~40℃
 Application   Smart lighting/Smart home
  Warranty   3 years
  Size  49*49*24mm
