2.4G RF 5 in 1 Remote Controller

Home/Remote Controller/Hand-hold Remote/2.4G RF 5 in 1 Remote Controller

2.4G RF 5 in 1 Remote Controller

1.   It’s compatible with Single white/Dual white/RGB/RGBW/RGBCCT LED products.

2.  4-Channel groups control or separately control.

3.  2.4G RF wireless transmission technology.

4.  Application: widely used for home and office.

5.  Three Year Warranty

Description

LM091 RF remote controller adopts world-wide used 2.4GHz frequency, GFSK control method, with the features of low power consumption, long distance transmitting, strong anti-interference and fast communication rate; It can control LED strip controller with color, color temperature, saturation and brightness changing.

Product Key Diagram:

remote controller

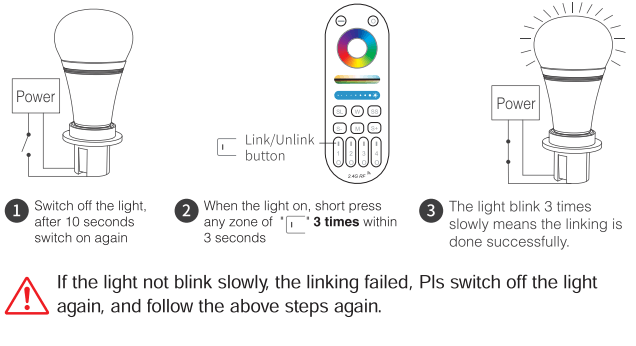

Linking instruction:

remote



Unlinking Instruction:

remote controller



  Item LM091
  Brand   Laimi
  Working Voltage   DC3V(2*AAA Battery)
  Standby Power consumption  15μA
Transmiting Power 6dBm
 Certification   CE/RoHS
  Transmission Frequency   2400-2483.5MHz
Modulation Method GFSK
  Control Distance  30m
  Working Temperature   -20~40℃
 Application   Smart lighting/Smart home
  Warranty   3 years
  Size  150*52*19mm
  Weight   160g
