2.4G RF RGBW LED Controller

Home/LED Controller/RF LED Controller/2.4G RF RGBW LED Controller

2.4G RF RGBW LED Controller

1.Works with DC12-24V low voltage RGBW LED strips.

2.Compatible with Amazon Alexa & Google Assistant(RF Gateway is needed).

3.16 million colors available,the color temperature is adjustable from 2200K to 6500K

4.Application: widely used for showcase,office,hotel,shop,exhibition room,landscaping, residential, home etc.

5.Three Year Warranty

Description

Our 2.4G RF RGBW LED controller is suitable for DC5V-24V RGBW LED strip light, It is so far the most worldwide used controller, which offers a simple way to control and schedule your home lighting.

RF RGBW LED Controller Features:

1. Our RF RGBW LED controller is the best smart controller to manage the color changing of your RGB strip light. It has below major features:

2. Connect to the LED strip

 Notice: controller input voltage must be in accordance with the required voltage of the LED strip light.

RF rgbw led controller

3.Auto-synchronization function

 Different controllers can work synchronously when they are started at different times, controlled by the same remote, under the same dynamic mode, and with the same speed.

4. Auto-transmitting Diagram

One controller can transmit the signal from the remote control to another controller within 30m. As long as there is a controller within 30m, the remote control distance can be limitless.

5. PWM Frequency Switching

Switch to Low Frequency:

Power on the light for over 10 seconds, long press the linked remote zone “ON” button for 10 seconds, when the light blink 3 times, switch to low frequency.

Switch to High Frequency:

Power on the light for over 10 seconds, long press the linked remote zone “ON” button for 10 seconds, when the light blink 10 times, switch to high frequency.

Note:

(1)Application to switch PWM frequency: to avoid noise when using different power supplies.

(2)Use LM007(for DIM or Dual White controller) or LM091(for RGB, RGBW, and RGBCCT controller) remote to switch the frequency.

(3)The default frequency is high frequency.

(4)When the user switches to low frequency, it may cause the light to flick.

6. Do Not Disturb

What is Do Not Disturb: When switching off the power, then switching on, the lights keep off without disturbing the rest of users.

Application to use Do not disturbing function:

(1)Widely use on the area where there is power failure frequently to save energy.

(2) When users go outside for long time, set up Do not disturb to avoid there is short circuit during this time.

Set up Do Not Disturb:

When the lights ON and not under dynamic mode, long press linked remote S+ button for 5 seconds, when the white lights blink once, set up the Do not disturb successfully.

Note:

(1)Do not Disturb will be available when the light is under OFF mode by remote or APP.

(2)When users set up Do not Disturb, the lights need to be switched OFF-ON twice within 5 seconds or use linked remote and APP to turn on the lights normally.

Delete Do Not Disturb:

When the lights ON and not under dynamic mode, long press linked remote S- button for 5 seconds, when the white lights blink 3 times, delete the Do not disturb successfully.

Note:

(1)After delete the Do Not Disturb, the lights will be ON when you switch OFF, then switch ON the power.

(2)The default mode for the device is without Do not Disturb, users must follow above steps to set up Do Not Disturb according to the real application.

(3)Please use our LM091 remote or wall remote to set up or delete Do Not Disturb.

As is seen from above,the RF RGBW LED controller is the most convenient controller, which is controlled by a remote directly in a easy way.

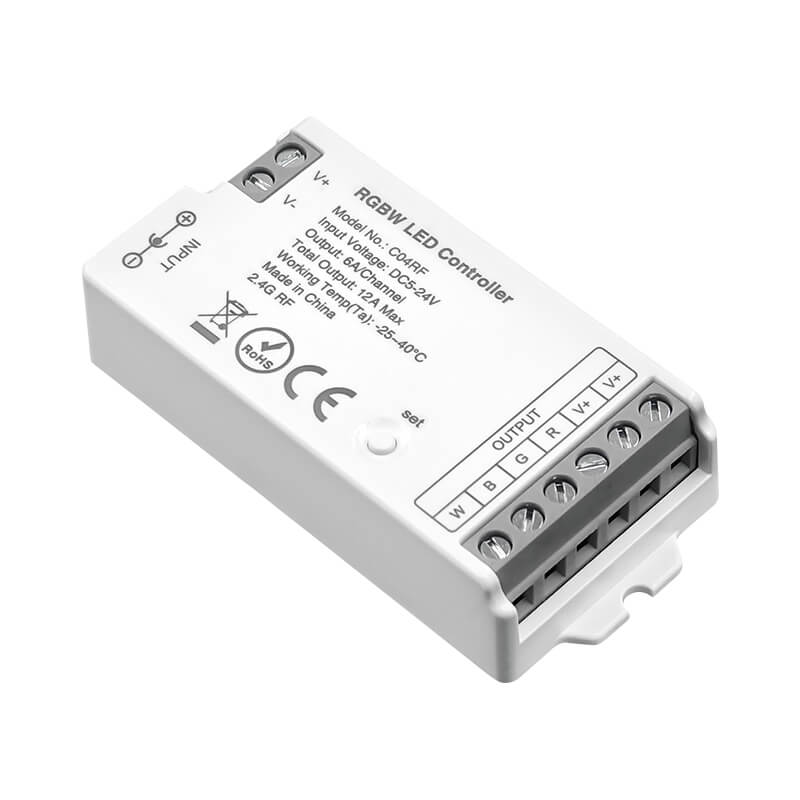

  Item   C04RF
  Brand   Laimi
  Input Voltage   DC5V/DC12V/DC24V
  Output   6A/Channel
    Total Output Max   12A
 Certification   CE/RoHS
 Controller   Type   APP control/RF Remote/Voice Control
  Control   Method   2.4G RF remote   control
  Working Temperature   -20~60℃
  Application            Smart lighting/Smart  home
  APP Name   Tuya Smart Life
  System    iOS/Android
  Warranty   3 years
  Material V-0 Anti-fire PC
  Size   74.5*35.6*16.5mm
  Weight   20g
